Solar Batteries - Power Backup

“There are no black and whites in the battery world, only shades of gray. The battery is a black box with a mind of its own; mystical and unexplainable. For some, the battery causes no problems whatsoever; for others it’s nothing but a headache.

Improvements have been slow. Whereas Moore’s Law* doubled the number of transistors in an integrated circuit every two years, capacity gain of lithium-ion (Li-ion) has been about 8 percent per year in the decades following its introduction in 1991. Figure 1 compares the energy storage capability of a battery over time compared to innovations in computing technologies.”

*In 1965, Gordon Moore said that the number of transistors in an integrated circuit would double every two years. The prediction became true and is being carried into the 21st century. Applied to a battery, Moore’s Law would shrink a starter battery in a car to the size of a coin.

Battery University [ Click here to read article ]

Batteries approved by Solar Forces Solutions

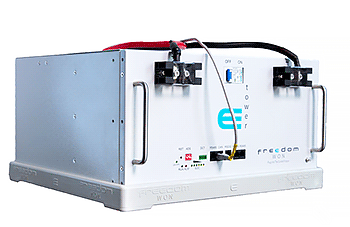

Freedom Won eTower LiFePO4 Battery 5kW 52V

The Freedom Won eTower is an economical and modular Life PO4 Solution for residential and light commercial applications

• Battery Type: Lithium Ion
• Nominal Energy: 5000 Wh
• Depth of discharge: 90.00%
• Voltage: 52 V
• Continuous Discharge Rate (Normal Use): 4700 W
• Maximum Discharge Rate (5 Minutes): 5200 W
• Maximum Charge Rate (5 Minutes): 4200 W

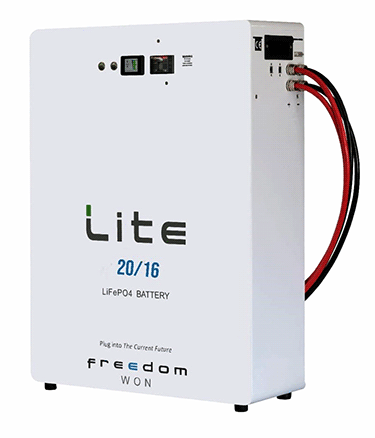

Freedom Won Lite Home 20/16 LiFePO4 Battery N

This Freedom Won Lite Home LiFePO4 battery is the perfect high quality battery for all your residential and industrial solar solutions. The range is from 5KWh to 30KWh batteries.

• Battery Type: Lithium Ion
• Nominal Energy: 20000 Wh
• Depth of discharge: 90.00%
• Voltage: 48 V
• Continuous Discharge Rate (Normal Use): 20000 W
• Maximum Discharge Rate (5 Minutes): 24000 W
• Surge Discharge Rate (15 Seconds): 24000 W
• Maximum Charge Rate (5 Minutes): 20000 W

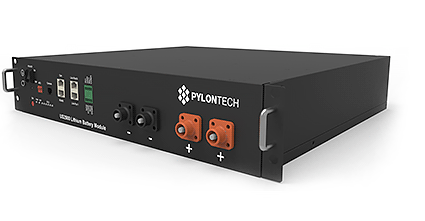

Pylon US3000C 3.5kWh Li-Ion Solar Battery

The US3000C is an HESS solar battery system provided by Pylontech, developed with their own lithium iron phosphate cell

• Battery Type: Lithium Ion
• Nominal Energy: 3552 Wh
• Depth of discharge: 95.00 %
• Voltage: 48 V
• Continuous Discharge Rate (Normal Use): 1776 W
• Maximum Discharge Rate (5 Minutes): 3552 W
• Surge Discharge Rate (15 Seconds): 4320 W
• Maximum Charge Rate: 1776 W

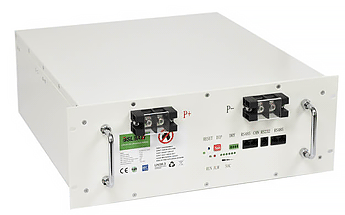

BSL Battery 5.12v – 100 Ah

Powercube series products offers flexibility for both rack mounted and container based constructions. Configurable from units of 5 - 18 modules per system, the system can supply 240 - 864V for high Voltage applications

• Battery Type: Lithium Ion
• Nominal Energy: 5120 Wh
• Depth of discharge: 90.00 %
• Voltage: 48 V
• Standard Discharge Rate (Normal Use): 1536 W
• Maximum Discharge Rate (5 Minutes): 5120 W
• Peak Discharge Rate: 8120 W
• Maximum Charge Rate: 2560 W

Solar Forces Solutions selects the 'Best of Breed' in hardware so as to offer the optimum solution to clients, offering 'Peace of Mind' in installation workmanship too.
